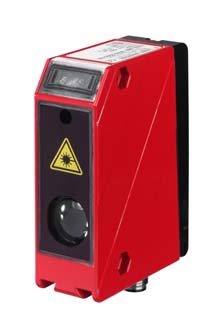

ODSLR 96B M/C6-2000-S12
Optical distance sensor
Part no.:
50106732
Delivery time approx. 25 business days
| Series | 96 |
| Type of scanning system | Against object |
| Light source 1 | Laser, Red |
| Laser class | 2, IEC/EN 60825-1:2014 |
| Light source 2 | LED, Red |
| Light spot size [at sensor distance] | 2 mm x 6 mm |
| Measurement range | 60 ... 2,000 mm |
| Resolution | 1.0 ... 5.0 mm |
| Accuracy, short range | 2 % |
| Accuracy, distant range | 1.5 % |
| Accuracy, short range | 60 ... 200 mm |
| Reference value, accuracy | Measurement distance |
| Repeatability | 0.5 % |
| Reference value repeatability | Measurement distance |
| Measurement time | 1 ... 5 ms |
| Referencing | No |
| Black/white behavior | 1 % |
| Optical distance measurement principle | Triangulation |
| Supply voltage UB | 18 ... 30 V, DC |
| Number of digital switching inputs | 1 Piece(s) |
| Function | Programmable |
| Number of analog outputs | 1 Piece(s) |
| Number of digital switching outputs | 1 Piece(s) |
| Type | Current |
| Switching element | Transistor, Push-pull |
| Type of connection | Connector |
| Thread size | M12 |
| Material | Metal |
| No. of pins | 5 -pin |
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Housing material | Metal |
| Metal housing | Diecast zinc |
| Lens cover material | Glass |
| Net weight | 380 g |
| Type of configuration | Software |
| Operational controls | Membrane keyboard PC software |
| Ambient temperature, operation | -20 ... 50 °C |
| Ambient temperature, storage | -30 ... 70 °C |
| Degree of protection | IP 67 IP 69K |
| Protection class | II |
| Approvals | c UL US |
| Standards applied | IEC 60947-5-2 |
