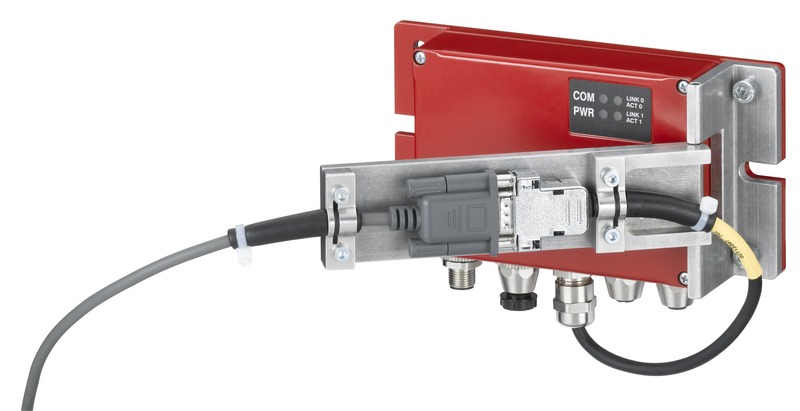

AC MA200-KB
Fastening
Part no.:
50135263
Available immediately
| Contains | 2x M6 x 10 screws 2x cable strain relief with bending protection |
| Suitable for product group | Connection units |
| Suitable for | MA 2xxi modular connection units |

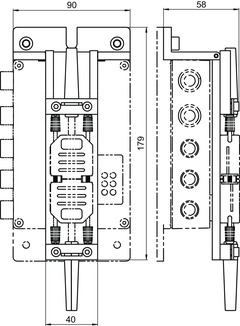

| Dimension (W x H x L) | 160 mm x 90 mm x 25 mm |
| Metal housing | Aluminum |
| Net weight | 230 g |
| Housing color | Silver |
| Design of mounting device | Cable routing |
| Type of fastening, at system | Screw type |
| Type of fastening, at device | Screw type |
| Type of mounting device | hinged, 180° |
| Mounting device material | Metal Plastic |
| Shock absorber | No |
| Customs tariff number | 84735080 |
| ECLASS 5.1.4 | 27279202 |
| ECLASS 8.0 | 27279202 |
| ECLASS 9.0 | 27273701 |
| ECLASS 10.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 13.0 | 27273701 |
| ECLASS 14.0 | 27273701 |
| ECLASS 15.0 | 27273701 |
| ETIM 5.0 | EC002498 |
| ETIM 6.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 9.0 | EC003015 |
| ETIM 10.0 | EC003015 |
