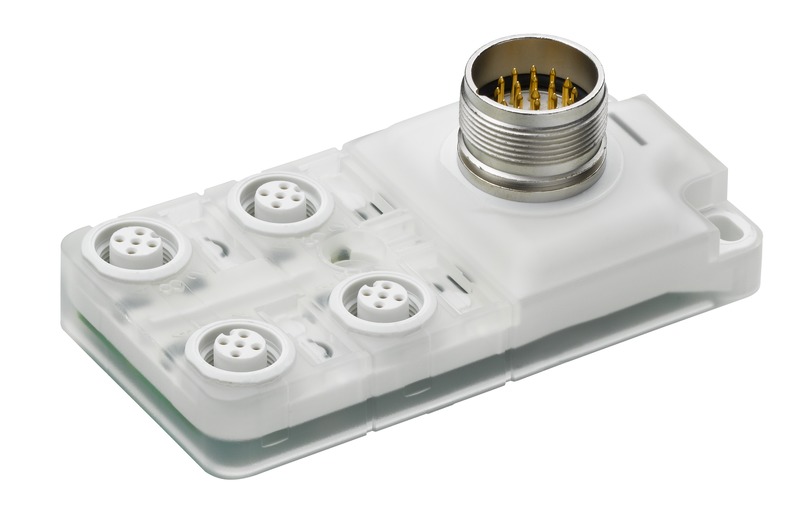

MD 7XXP-11-42IO5-13
Distribution box
Part no.:
50130606
Results list: 1 products found
MD 7XXP-11-82IO5-13
Distribution box
Part no.:
50130608
- Distribution box connections: 8 Piece(s)
- Distribution box, thread size: M12
- Distribution box, no. of pins: 5 -pin
- Master connection: Connector, M23
| Switching element | PNP |
| Total current | 8 A |
| Nominal input voltage UN | 24 V DC |
| Type of connection | Connector |
| Function | Connection to the control |
| Thread size | M23 |
| No. of pins | 12 -pin |
| Encoding | A-coded |
| Type | Male |
| Design | Cubic |

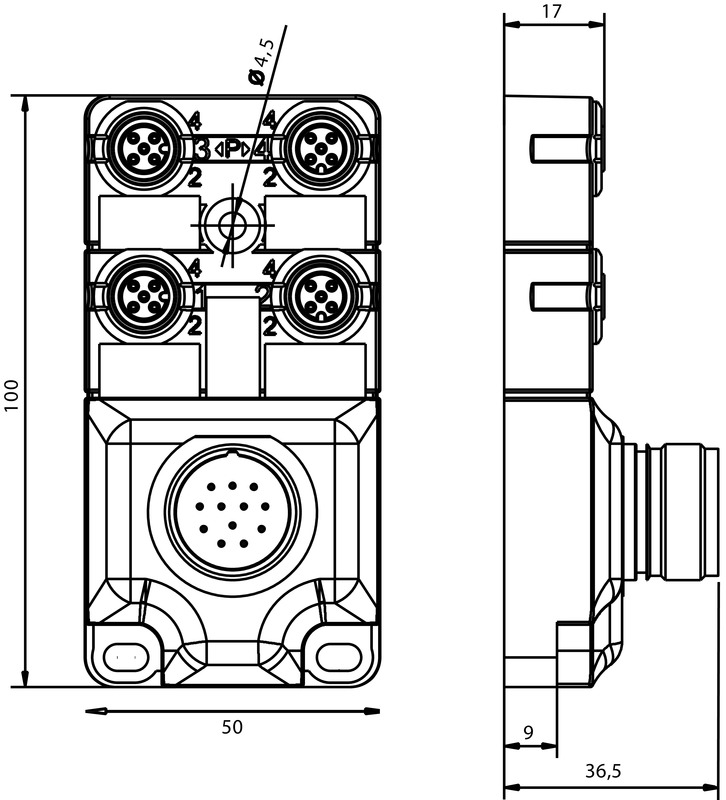

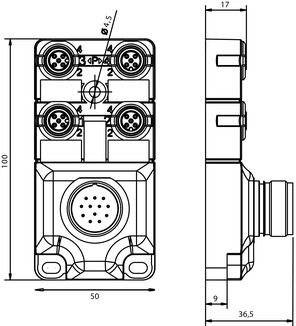

| Dimension (W x H x L) | 50 mm x 36.5 mm x 100 mm |
| Housing material | Plastic |
| Net weight | 140 g |
| Screw tightening torque | 0.6 N·m |
| Type of display | LED |
| Ambient temperature, operation | -20 ... 70 °C, Depending on the connected cable |
| Degree of protection | IP 65 IP 67 |
| Approvals | c UL US |
| Customs tariff number | 85369010 |
| ECLASS 5.1.4 | 27279201 |
| ECLASS 8.0 | 27279219 |
| ECLASS 9.0 | 27440108 |
| ECLASS 10.0 | 27440108 |
| ECLASS 11.0 | 27440108 |
| ECLASS 12.0 | 27440108 |
| ECLASS 13.0 | 27440108 |
| ECLASS 14.0 | 27440108 |
| ETIM 5.0 | EC002585 |
| ETIM 6.0 | EC002585 |
| ETIM 7.0 | EC003558 |
| ETIM 8.0 | EC002585 |
| ETIM 9.0 | EC002585 |
